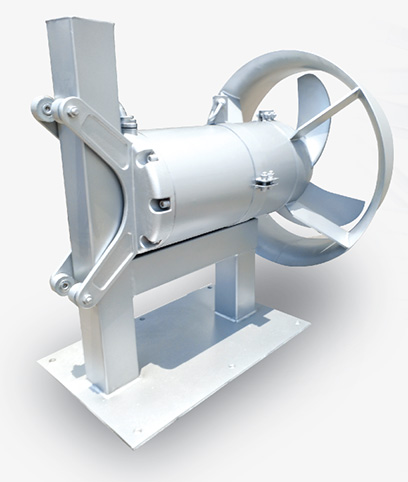

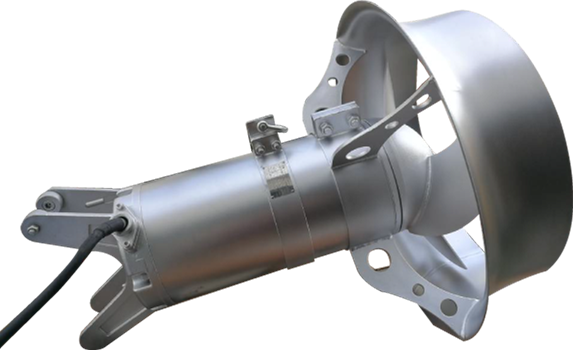

Submersible Mixer

Main Application:

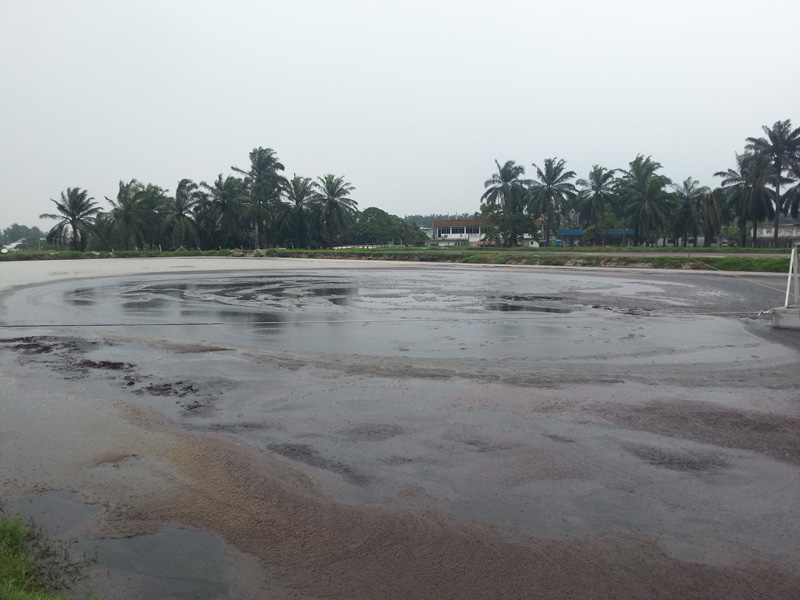

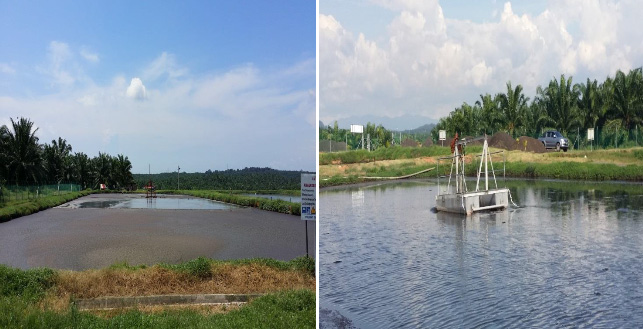

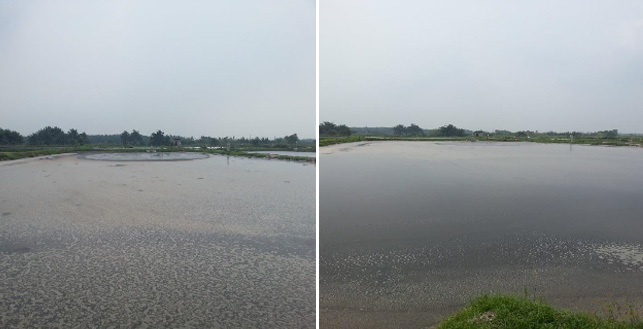

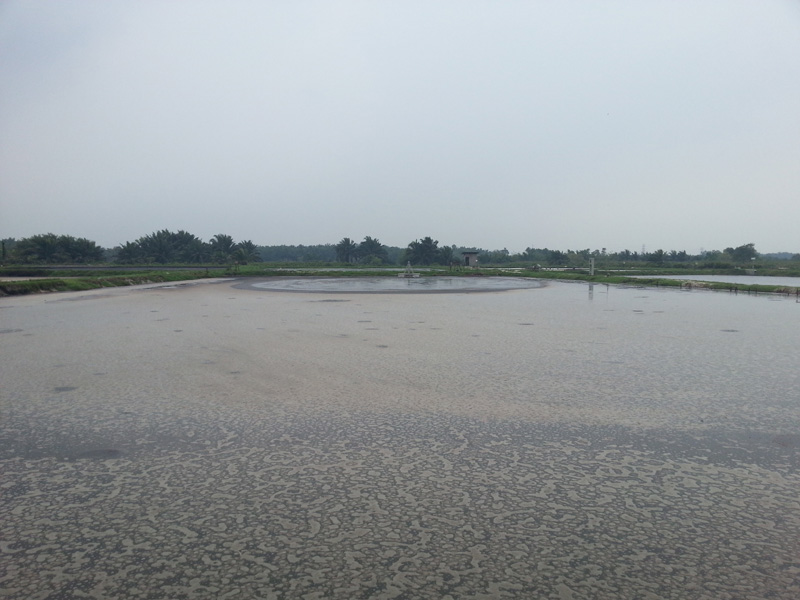

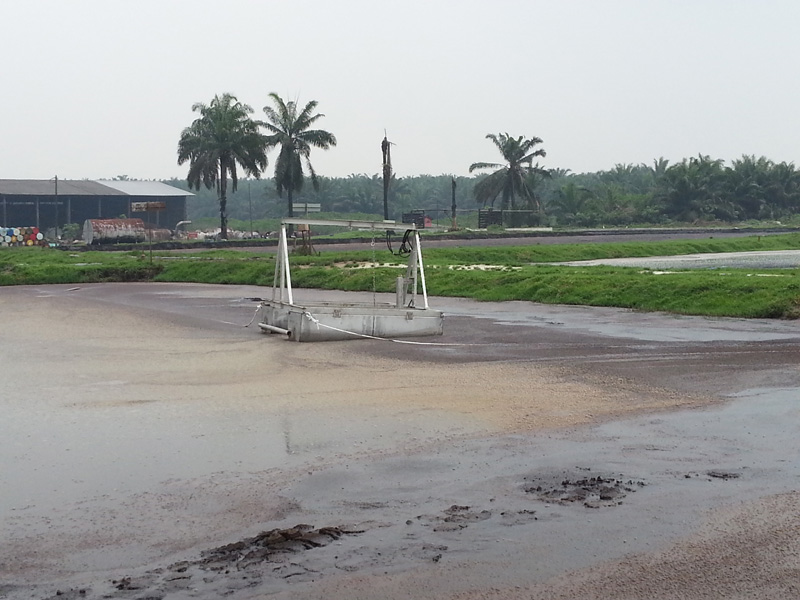

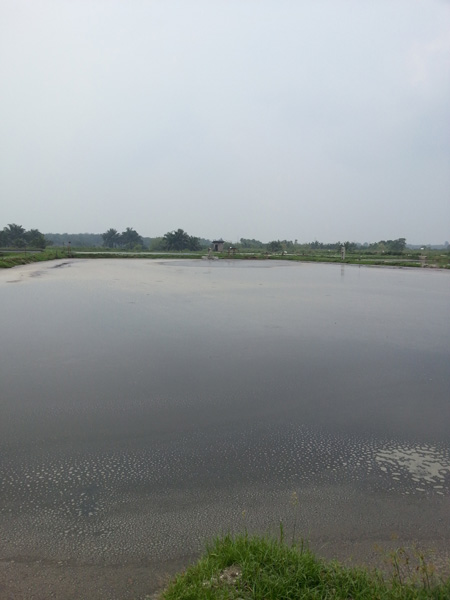

WES Stainless Steel Mixer provide most energy efficient solution to mixing, dissolving, agitating and suspension for industrial sewage treatment process

Condition of Usage:

• Medium temperature shall not over 40 deg'c
• PH value of the medium between 5-9
• Density shall not over 1150 kg/m3
• Must operate submersion into water completely
• The depth submersion operation shall not over 20m

Features

• Easy & convenience maintenance to prolong the life span.
• With stainless steel swept back design pressing impeller resulted in high efficiency and self-cleaning function
• Complete with Class F, IP68 submersible motor to ensure more reliable service.
• International quality bearing, dual tungsten carbite sealing together with fully stainless steel body.
• Lowest energy consumption.

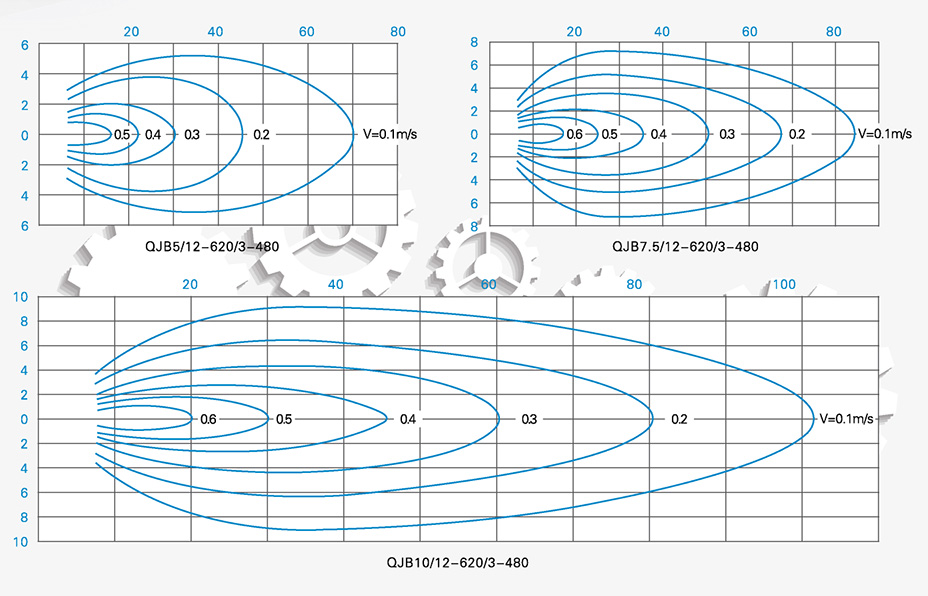

Specification

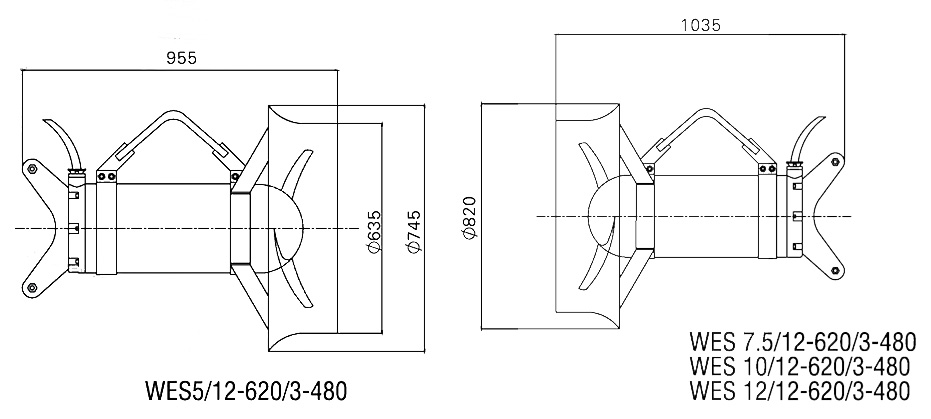

Model	Rated Power (kw)	Current Rating	Diameter of Impeller (mm)	Speed of Propeller (r/min)	Thrust (N)	Weight (KG)
WES 5/12-620/3-480C/S	5.0	18.2	620	480	1800	184
WES 7.5/12-620/3-480C/S	7.5	27.0	620	480	2600	229
WES 10/12-620/3-480C/S	10.0	32.0	620	480	3300	229
