WES 300 Turbine Aerator

Industries demand for efficient durable and affordable aerator is what WES 300 provides

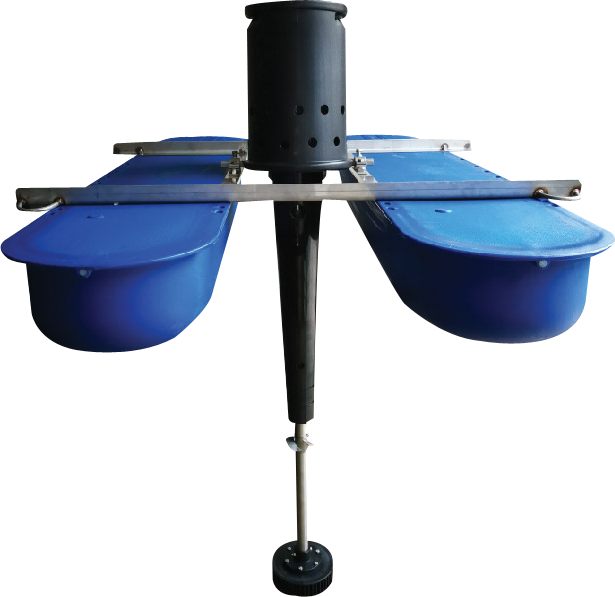

About WES 300 Aerator

WES 300 is a simple, durable and high performance aerator which applicable to a wide range of waste water treatment processes.

WES 300 uses an energy efficient 1.5kW/2HP motor to provides high oxygen transfer efficiency of 7.5kg/hour.

WES 300 designed for continuous operation with dynamics parts which made of corrosion/wear resistant material achives highest prformance and long lifespan.

Advantages

  • Made of corrosion-tesistant material
  • Clog-free
  • Low noise level
  • Minimal disturbance to water current
  • Minimal power consumption
  • High oxygen transfer efficiency (7.5kg/hr)
  • Designed with dynamic parts
  • Light weight (35kg)
  • Able to operate 24/7
View Equipment in Progress

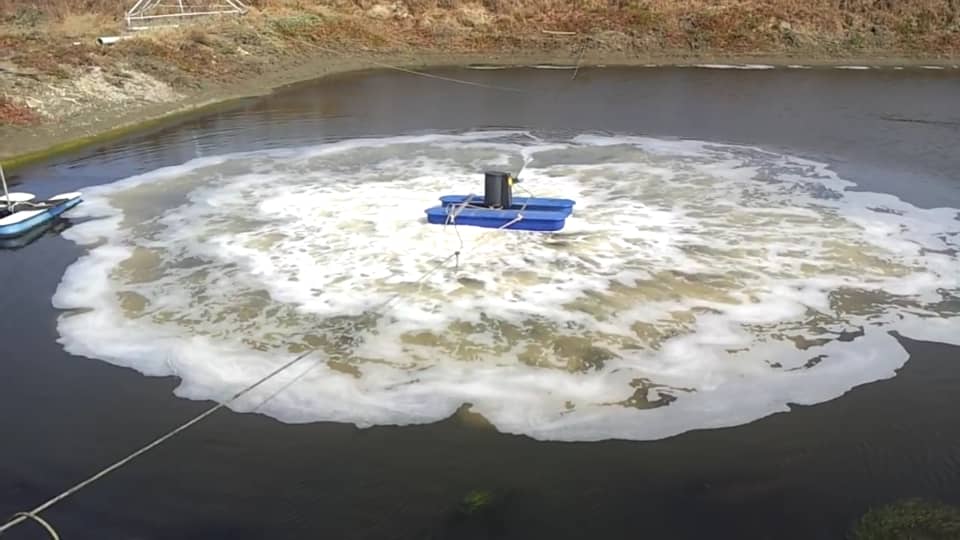

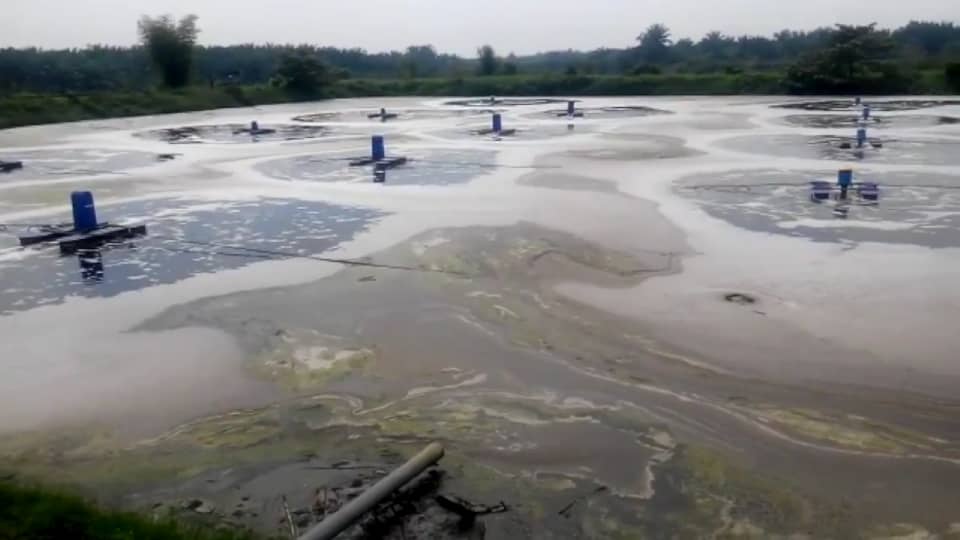

Coverage

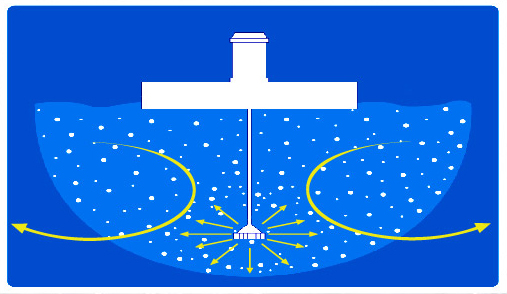

Working Principle

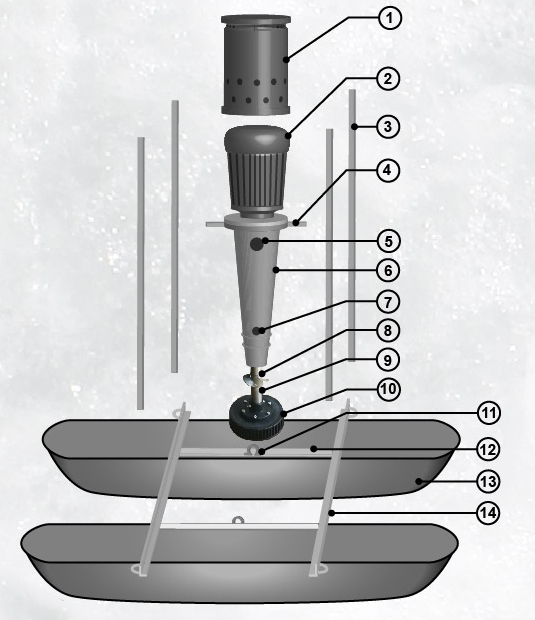

Part List

  1. Motor Cover
  2. Motor
  3. Setting Bar
  4. Adjust Anchor
  5. Air Inlet
  6. Centralized Driving Pipe
  7. Water Level Regulation
  8. SS304 Additional Propeller
  9. SS304 Shaft
  10. Hope Impeller
  11. Adjust Base
  12. Base SS Bracing
  13. Floater
  14. Frame
